Sawing Capabilities:

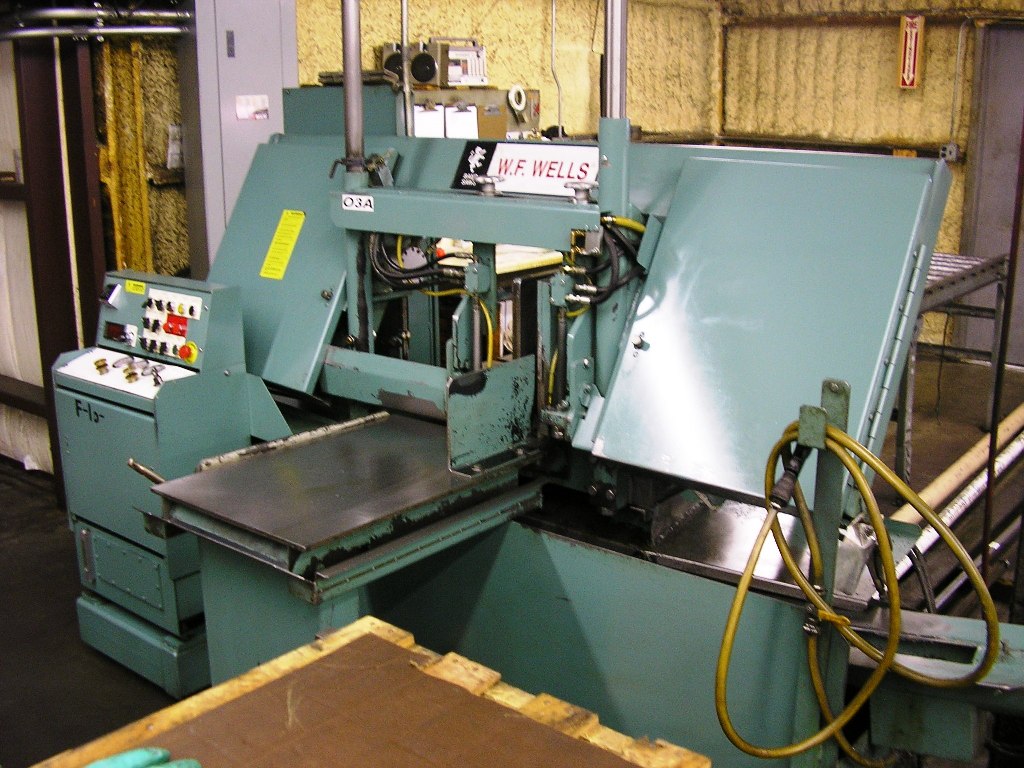

 (1) Wells F-16-2A Saw:

• 8” diameter capability

(1) Hyd-Mech H-18 Saw:

• 14” diameter capability

Grinding Capabilities:

 (1) Blanchard Model 22K-42 Vertical Spindle Surface Grinder:

• 42” table
• 12” height capability
• Capable to .0015” tolerance spread

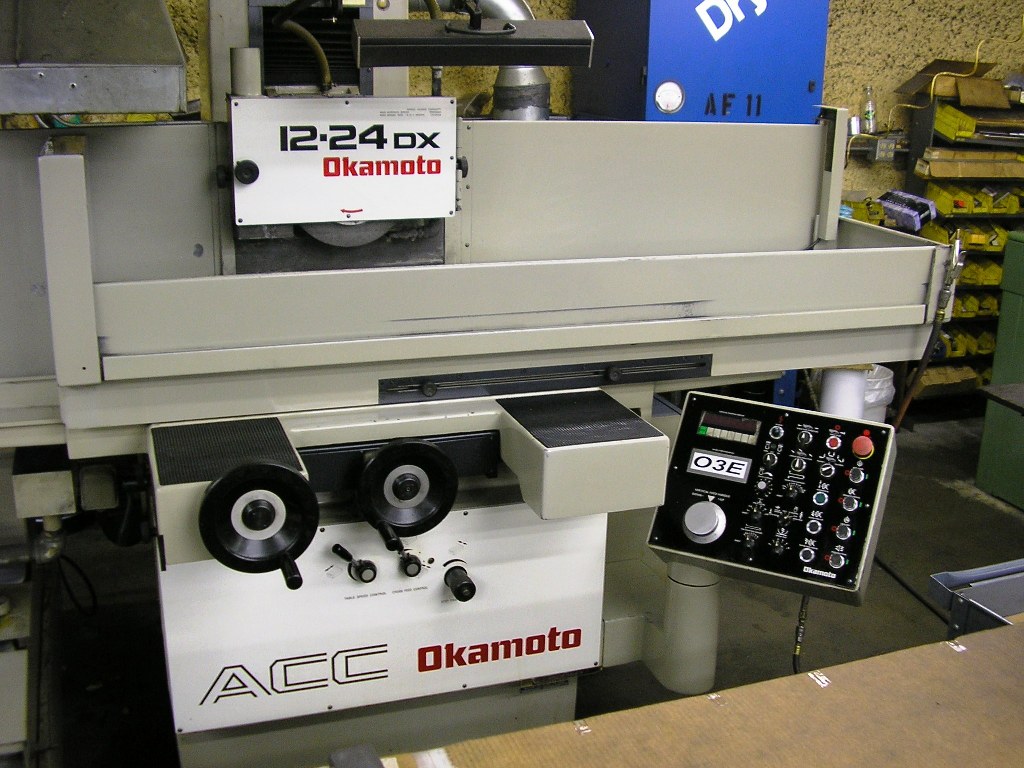

 (1) Okamoto Model 12-24DX Horizontal Spindle Surface Grinder:

• 12” x 24” table
• 12” height capability
• Capable to .0004” tolerance spread

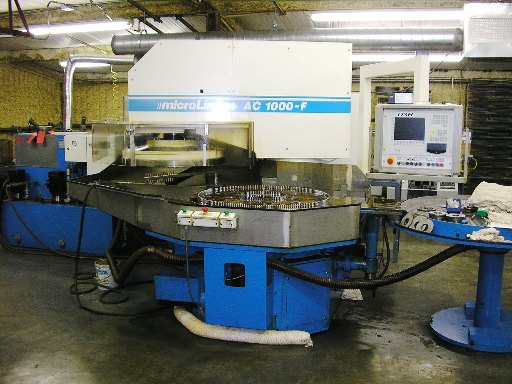

 (1) Peter-Wolters AC1000 Fine Grinder:

• Uses carrier configuration with .750” minimum to 8.0” maximum diameter capability
• Employs CBN pellet wheels top and bottom
• Capability of .000020” to .000200” flatness (dependent upon size and material)
• Capable to .000100” load to load thickness repeatability (dependent upon size variation presented load to load)
• Currently set for hard materials (i.e.: 45-63Rc) although softer materials may be run (review and possible testing required).

 (1) Peter-Wolters 4R1200 Single Side Lap:

• 4 work station design
• Capable to .000010” to .000060” flatness (dependent upon size, material, and incoming size and geometry variations)
• Excellent surface finish capabilities

 (1) Ded-Tru Model C Centerless Grinder:

• Capable to .00020” tolerance spread under normal production requirements
• Size range from .030” to 2.500” (1:2 diameter to length)
• Equipped to grind a wide variety of materials

(2) Cincinnati No. 2 Centerless Grinder:

• Capable to .00040” tolerance spread
• Size range from .125” to 3.000” (1:2 diameter to length)
• Equipped to grind a wide variety of materials

Finishing Capabilities:

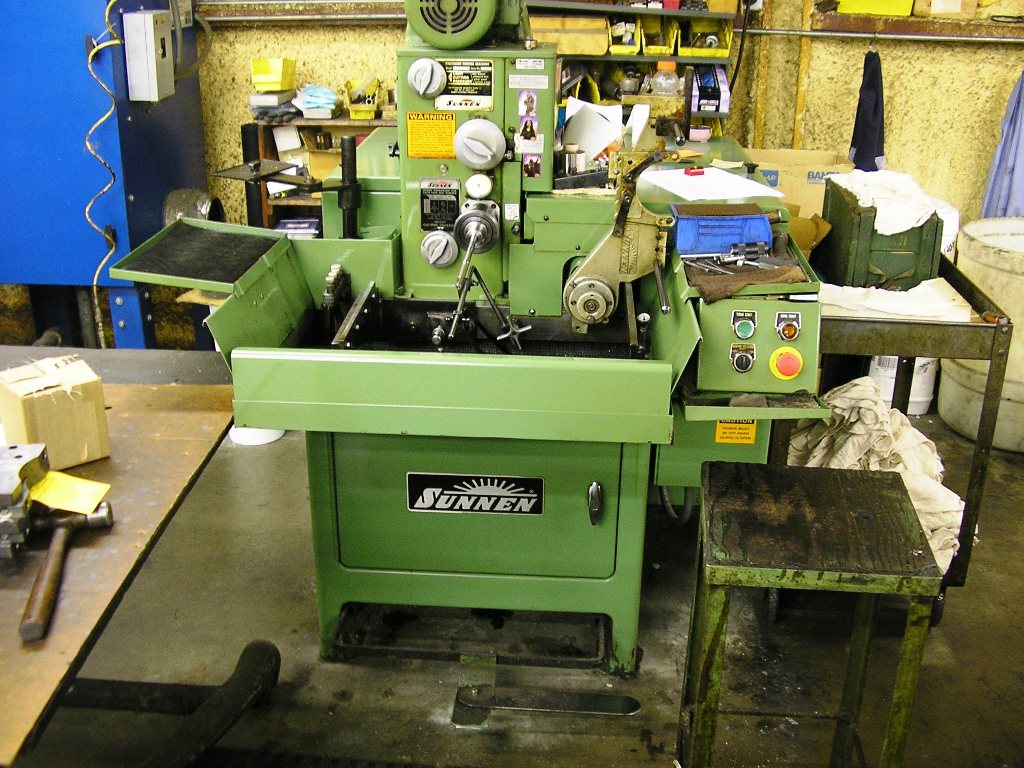

 (1) Model 1803-MBC Sunnen Hone

• Conventional tooling and diamond single-stroke honing
• Tolerance and Surface finish dependent on application.
• Size range from .060 – 6.000

(2) Vibratory Deburring Machines (Bowl Type)

• 4 cu / ’ and 8 cu / ‘
• Ceramic media
